How Modern 3D Scanning Simplifies Digital Design and Reverse Engineering

Published

on

How Modern 3D Scanning Simplifies Digital Design and Reverse Engineering

Turning a physical object into an accurate digital design can be a challenging task when traditional measurement methods are involved. Engineers and designers often have to record dimensions manually, recreate curves, and determine how individual surfaces fit together. Modern 3D scanning technology offers another approach by capturing the geometry of an object digitally and providing detailed information that can be used throughout the design process.

One increasingly useful application is scan to CAD, which allows physical components to become references or foundations for computer-aided design. With the right scanner and software, professionals can capture complicated shapes, process the resulting data, and develop digital models for engineering, prototyping, inspection, and manufacturing.

Among the equipment available for professional scanning applications, the Afinia EinScan Rigil Tri-Mode Laser 3D Scanner provides a combination of scanning approaches intended to accommodate different types of projects. Understanding how technologies like this fit into a modern design workflow can help businesses make better use of their existing physical components and prototypes.

Moving From Physical Parts to Digital Models

Traditional reverse engineering often begins with physical measurements. Calipers, gauges, rulers, and other instruments can provide useful information, but complex components may contain hundreds of curves, recesses, holes, and irregular surfaces.

A 3D scanner approaches the problem differently. Instead of measuring individual dimensions one at a time, it captures a large amount of surface information in a relatively short period. The collected information can then be processed into a digital representation of the object.

This can be especially helpful when original drawings or CAD files are unavailable. An existing component can become the starting point for creating a new digital model.

The Role of Scan to CAD

The scan to CAD workflow is particularly valuable when the objective goes beyond simply creating a visual copy of an object.

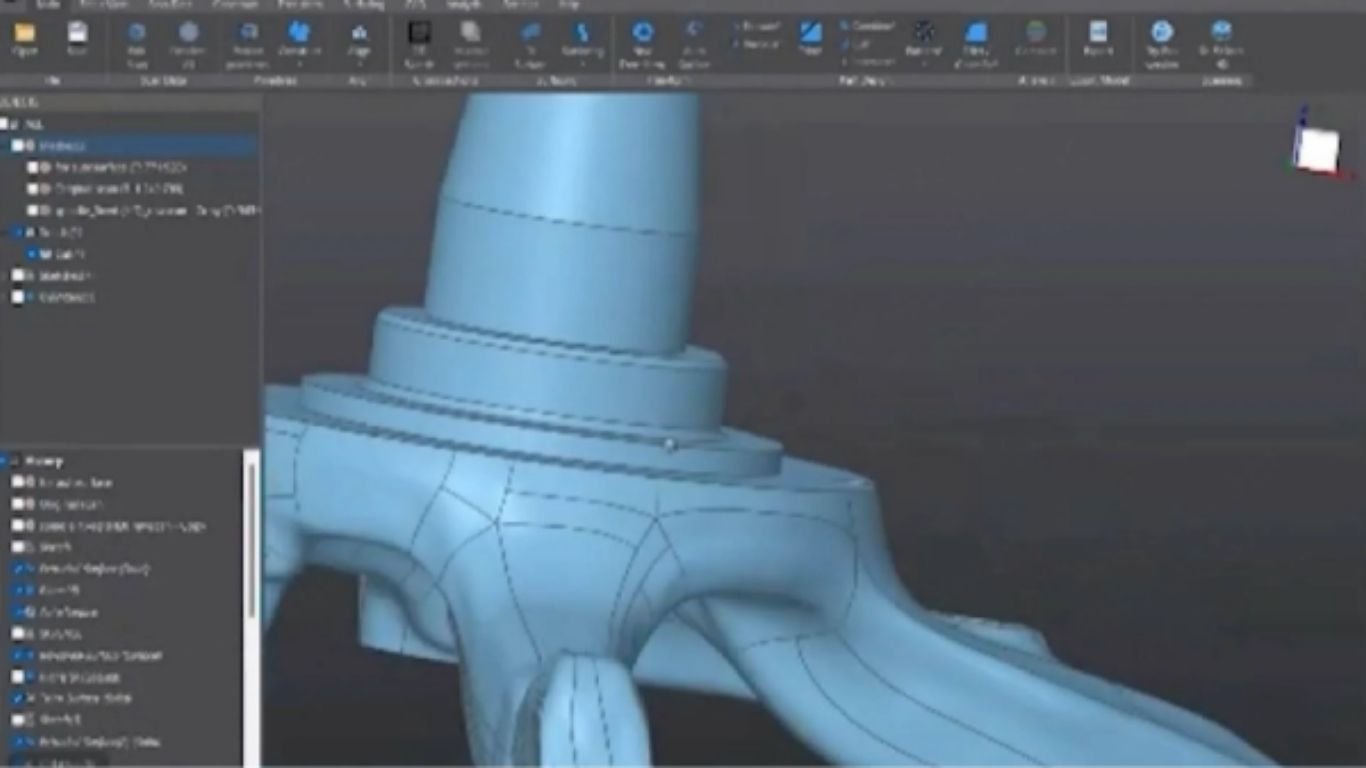

A typical scan initially produces data such as a point cloud or polygon mesh. This data represents the surface captured by the scanner, but it is not necessarily the same as a conventional engineering CAD model.

Additional processing may therefore be required. The scanned geometry can be cleaned, aligned, measured, and used as a reference for reconstructing surfaces and engineering features. Depending on the project, designers may recreate planes, cylinders, holes, curves, and other elements within CAD software.

The result can be a more useful digital representation that can be edited, incorporated into assemblies, or used during product development.

Why Laser Scanning Matters

Laser-based scanning technology can be useful when capturing detailed physical geometry is important. Laser scanners project or use laser lines to collect surface information, allowing software to build a representation of the scanned object.

Different scanning modes can be useful for different situations. A smaller component with intricate details may require a different approach from a large industrial object. Having multiple scanning options can therefore make a system more adaptable across projects.

The Afinia EinScan Rigil Tri-Mode Laser 3D Scanner is designed around this type of flexibility, offering multiple scanning modes for different scanning requirements.

Working With Different Object Sizes

One challenge in 3D scanning is that physical objects can vary dramatically in size. A small mechanical component may require detailed capture of tiny features, while a larger industrial part requires the scanner to cover a much broader area.

A versatile scanner can make it easier to move between different applications without relying on completely separate systems.

For engineering teams that regularly work with prototypes, replacement parts, machinery components, and product samples, flexibility can be particularly useful. Instead of treating every project as a completely different process, operators can select an appropriate scanning mode based on the size and geometry of the object.

Applications in Reverse Engineering

Reverse engineering is one of the most obvious applications for 3D scanning.

Consider an older mechanical component for which the manufacturer no longer has accessible design files. Recreating the component manually could require considerable time, especially if its geometry is complicated.

A scanning workflow can capture the existing part and create a digital reference. Engineers can then use the captured information to reconstruct the component in CAD software.

This does not mean the scanner automatically produces a finished engineering design. Human review and CAD modeling may still be necessary. However, having accurate digital reference data can reduce the amount of manual measurement required.

Supporting Product Development

3D scanning can also be incorporated into product development cycles.

A designer might create an initial CAD model and manufacture a physical prototype. After examining the prototype, the team can scan it and compare the physical geometry with the intended design.

This comparison can reveal differences between the digital design and the manufactured object. Designers can then investigate those differences and determine whether adjustments are necessary.

The same approach can be used when modifying an existing product. Instead of starting with an empty CAD workspace, designers can capture the existing product and use its geometry as a foundation for future development.

From Scan Data to Manufacturing

The usefulness of scanned data extends beyond CAD modeling. Once the digital model has been properly processed, it can become part of a larger manufacturing workflow.

For additive manufacturing, a suitable digital model can eventually be prepared for slicing and 3D printing. For conventional manufacturing, CAD geometry can support machining, tooling, or fabrication processes.

Inspection is another important application. A scanned object can be compared with a reference model to identify dimensional differences. This can be valuable for quality control and prototype evaluation.

The key is understanding that scanning is one stage of a broader digital workflow rather than the entire manufacturing process.

Surface Preparation and Scanning Conditions

Good scanning results depend on more than the scanner itself. Object preparation, lighting, surface properties, positioning, and scanning technique can all influence the quality of captured data.

Highly reflective, transparent, or extremely dark surfaces can sometimes create challenges for optical scanning systems. Operators may need to use appropriate preparation techniques or adjust the scanning approach.

The object should also be positioned so that important areas can be reached from multiple angles. Overlooking hidden surfaces during the capture stage can result in incomplete data.

Taking time to plan the scan can therefore reduce the amount of cleanup required later.

Processing the Captured Data

Raw scanning data often requires processing before it becomes useful for engineering work.

Operators may need to remove unwanted points, fill small gaps, align multiple scans, and merge separate captures. Once the geometry has been cleaned, it can be used for measurement, inspection, mesh-based applications, or CAD reconstruction.

The amount of processing required depends on the intended result. A model intended for visual presentation may require less engineering reconstruction than a component intended for precise manufacturing.

This distinction is important when planning a scanning project because it helps set realistic expectations about the time and expertise required after data capture.

Choosing a Scanning Solution

Selecting a 3D scanner should begin with the intended application rather than simply focusing on specifications. Businesses should consider the size of the objects they need to scan, the level of detail required, expected accuracy, scanning speed, software compatibility, and the type of output they need.

Teams involved in reverse engineering may prioritize dimensional information and CAD compatibility. Product designers may focus on flexibility and efficient capture. Inspection departments may have different requirements related to accuracy and comparison workflows.

A multi-mode system can be useful when a business works with a variety of objects and does not want its workflow limited to one scanning method.

Building a More Efficient Digital Workflow

The biggest advantage of modern 3D scanning is not simply the ability to create a digital copy. Its real value comes from connecting physical objects with digital design, engineering, and manufacturing processes.

When scanning is combined with appropriate processing and scan to CAD techniques, organizations can create repeatable workflows for reverse engineering, prototyping, inspection, and product development.

The Afinia EinScan Rigil Tri-Mode Laser 3D Scanner represents one option for organizations looking for a flexible laser-based scanning solution. As with any professional equipment, its suitability ultimately depends on the objects being scanned, the required accuracy, and the intended downstream application.

Conclusion

3D scanning continues to change how engineers and designers interact with physical products. Instead of relying entirely on manual measurements, teams can capture complex geometry digitally and use that information across multiple stages of development.

Whether the goal is reverse engineering an existing component, inspecting a prototype, or preparing geometry for further CAD work, a well-planned scanning workflow can save time and provide a detailed digital reference.

By combining capable scanning hardware with effective data processing and scan to CAD techniques, businesses can create a practical connection between physical products and modern digital manufacturing environments.
